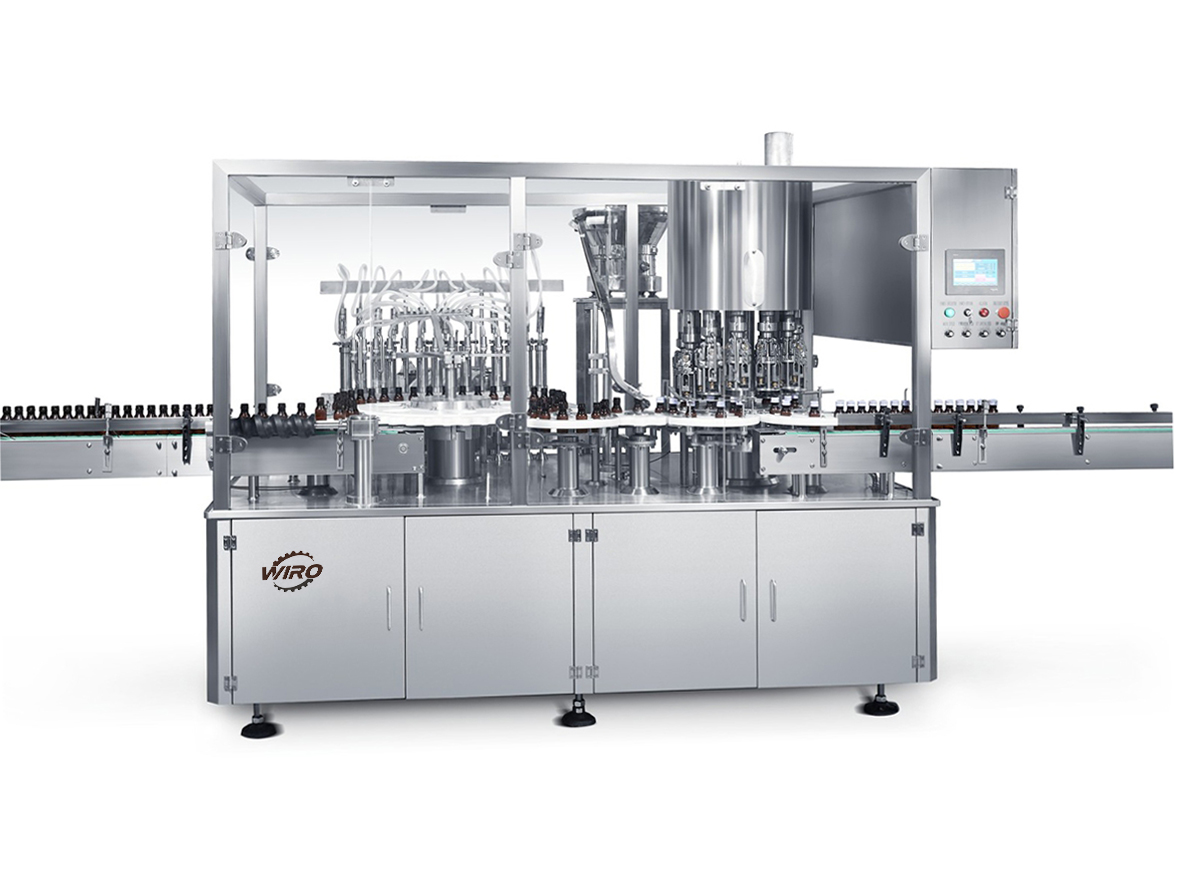

Bottle size*

Min.Ø20mmMax.Ø48mm

Kind of cap

Alternative snap on cap, screw cap, alum. cap

Cap size*

Ø20~Ø35mm

Filing head

12nos.

Capping head

8nos. seaming / 12nos. screwing

Speed

Up to 200bpm@50ml

Alternative Filling volume*

15~50ml，50~100ml

Filling accuracy

±1.5%

Power*

220V 50/60Hz 4.5kw

Compress air require

20L/min, 4~6bar

Machine size mm

Length 2900, width1300, height 2000

Machine weight:

2000kgs

1.

Loading Conveyor

1)Length: 1000mm

2)Top chain belt material: POM

3)Belt width: 600mm

2.

Liquid buffer tank

4)Volume: 100L

5)Installed auto liquid feed valve

6)Upper/lower level controller

7)Liquid pipe dispenser

3.

SS316L

Piston Pump*

8)Heads of piston pump:12

9)Alternative pump size: 15~50ml,50~120ml

10)Filling accuracy: ±1.5%

11)SS316L check valve application prevent leakage from nozzle

12)Pump sets resist moist heat sterilization temperature 120deg.

13)Fast connection type, easy take pump sets down clean without tool

4.

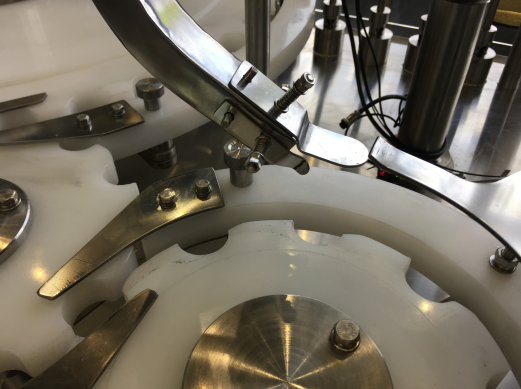

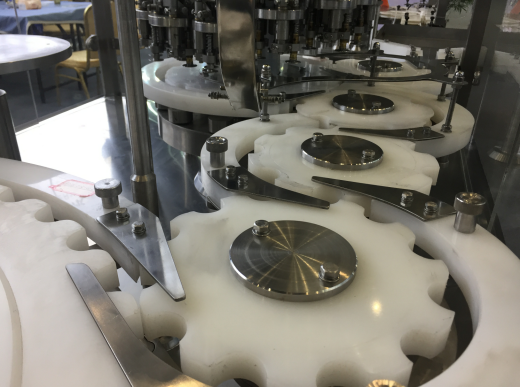

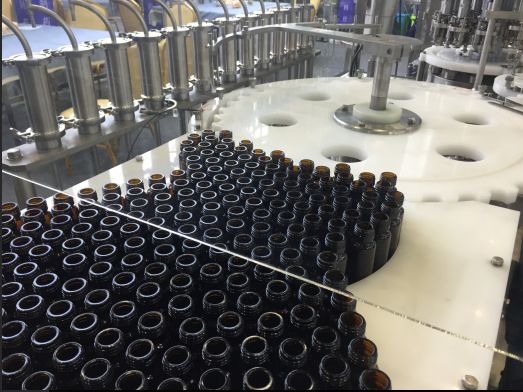

Index wheel

14)Material: PP

15)Index wheel changeable to fit to different bottle diameter

16)Changeable without tool

17)Index wheel is driven by high precision indexing cam box, ensure indexing bottle under right position of working station

18)Index wheel overload protection installed

5.

Cap unscrambler

19)Type: vibrator

20)Cap size on request

21)Adjustable height to suit to different bottle height

6.

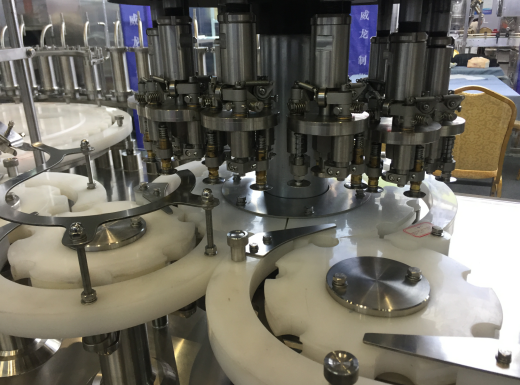

Capper

22)Capper type on request: screw-on, alum. cap, press-on cap

23)Overload protection reduce scratch on mouth and cap

24)Adjustable torque: 1~3NM

25)Bottle clamper ensure cap screw on well

7.

PLC controller

26)HMI+PLC: French Schneider

27)Auto count production output

28)No bottle no filling

29)Auto stop machine when index wheel overload/block

30)Machine speed adjustable controlled by frequency inverter

8.

Machine frame

31)Frame in carbon steel with antirust coat profile

32)SS304 sheet covering

9.

Optional parts:

33)Acrylic Safeguard hood(option)

34)Interlock door open auto stop machine(option)

35)Cap elevator(option)

10.

Accessories

36)Manual book:1copy

37)Qualification certificate:1original

38)Tool kit:1unit

39)Spare and wearing parts:

+ Silicone tube 4m+ “O” ring of piston pump 12pcs

+ “O” ring of check valve 12pcs
