LP/EPC-50 Drop Vial Filling Line
Drop Filling Line, Eyedrop Filling Line, Pipette Filling Line, Unscrambler, Filling, Capping

LP/EPC-50 Drop Vial Filling Line

sales@wiromachine.com
Inquire Now
Product Detail

DXYG2-1.jpgGeneral Features:

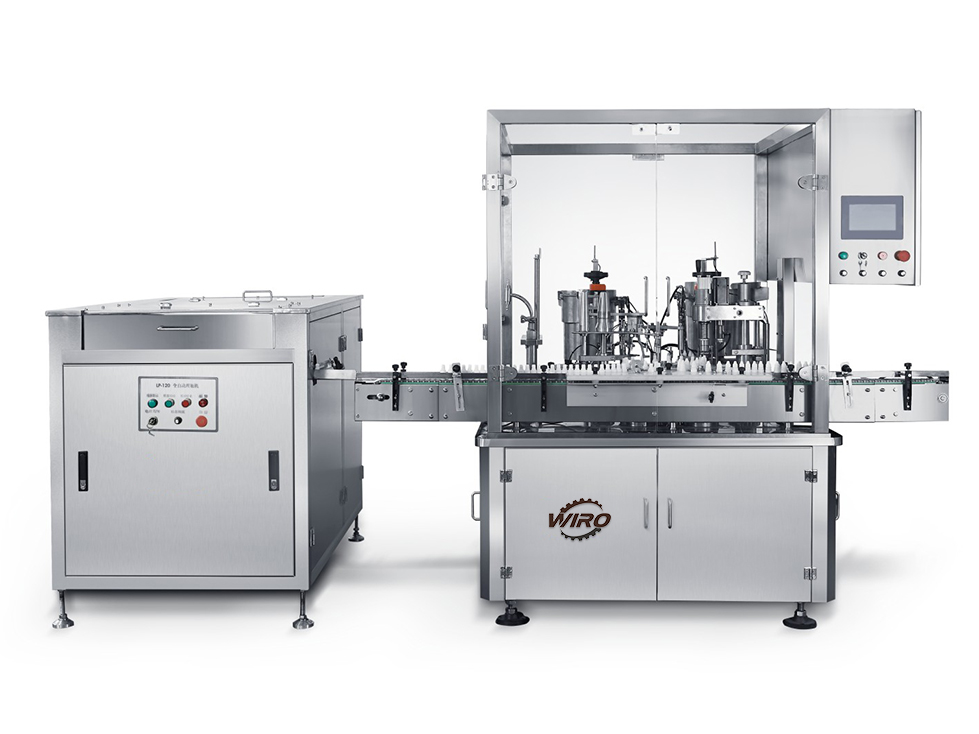

Eyedrop filling, plugging & capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling (servo system), plug &cap place, cap screw-on. The machine is composed by a conveyor, ceramic piston pump (alternative SS pump or peristaltic pump) &fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system. It is designed and made accordance to GMP regulation.

Technical Features:

Kind of bottle

Various kind, e.g. round, flat, oval

Bottle size*

Min. Ø 20mmMax. Ø35mm

Speed

50-60bpm@10ml

Filling volume*

5~20ml

Filling accuracy

±1%

Power*

220V 50/60Hz 2.5kw

Compress air require

50L/min, 4~6bar

Machine size mm

Length 1500, width 1300, height 1800

Machine weight:

800kgs

* Other sizes on request

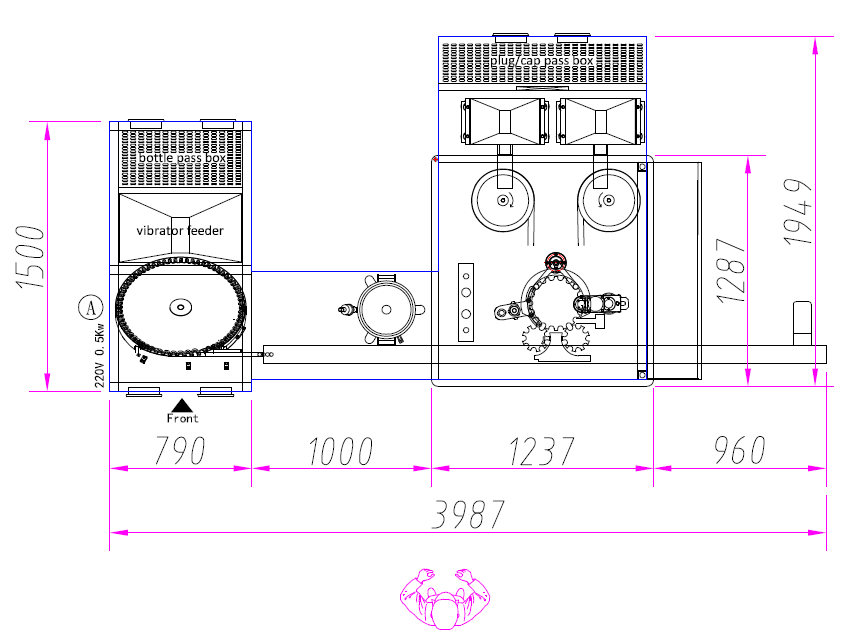

Layout of Filling Line(Aseptic design)
