Brief

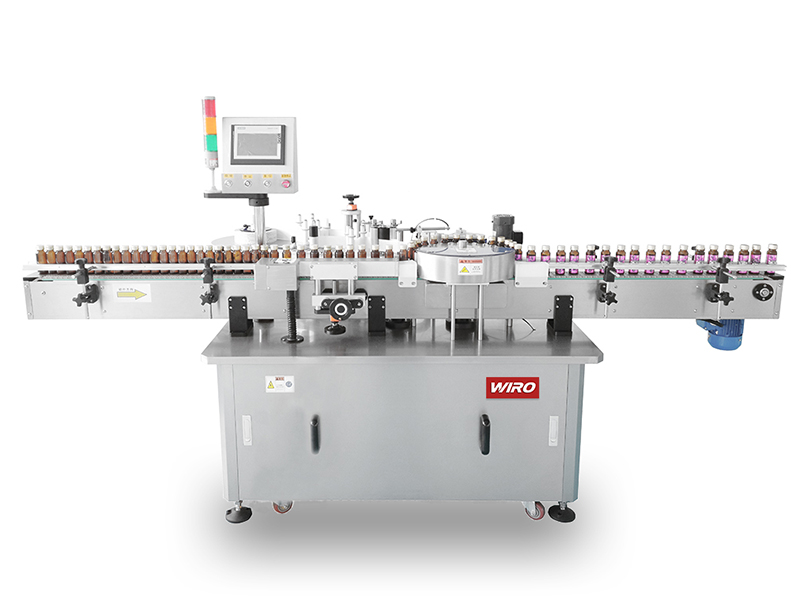

The SMT2531 labeling machine is a high-speed round bottle labeling machine developed by our company based on customer requirements for the health product industry, enzyme industry, pharmaceutical industry, and veterinary medicine industry. It solves the problem of slow labeling speed and low accuracy throughout the week. The main functions are: automatic labeling, batch number printing, missing labeling and missing printing detection system, defective product rejection system, the whole machine is controlled by plc linkage, full Chinese touch screen operation, and the back end can be connected with the cartoning machine system to achieve the whole Line packaging automation.

Equipment Introduction

lMotor system:

a) At present, most labeling hosts in the same industry in mainland China and Taiwan use a stepping system, but the stepping system is prone to out-of-step and reduced torque under high-speed (more than 250 times / minute) high-load operation, which will cause random labeling and leakage Standard, partial lottery and other unstable conditions; and the servo system has extremely high stability and synchronization.

b) The fastest response speed is up to 1200 times / minute, and the torque is strong, never losing step.

c) The manufacturing cost is 3 times more expensive than the stepping system.

d) Demand for high quality, high production capacity and high precision, adopts Japan Fuji servo system.

lPLC control system:

a) Real fuzzy (intelligent) is free of settings and adjustments.

b) Start up, the system has completed all calculations and preparations for labeling.

c) The perfect product can be posted at the touch of a button, with mass production, number of labels

d) Advanced functions such as volume management and self-diagnosis. Therefore Siemens PLC

lOperation mode:

a) Using the most advanced touch human-machine interface, full Chinese display,

b)Just follow the instructions on the display without any experience,

c)You can go online easily, greatly reducing personnel training time.

d)Super self-diagnostic function, if there is an abnormal failure: if there are conditions such as running out of labels and ribbons, broken tapes, missing sheets, count setting arrival and mechanical abnormalities, it will automatically stop and issue an alarm, and immediately display possible causes and eliminate method.

e)Using German Siemens touch human-machine interface.

lThe machine has the following functions

a) No label, volume label, missing label alarm and automatic shutdown;

b)No labeling without bottles;

c)With a pause switch for emergency shutdown;

d)Alarm and stop when the machine has abnormal conditions;

lHigh production efficiency and stable operation:

a) The machine never needs to be refueled (both oil-free and lubrication-free bearings);

b) Can be equipped with printing system, printing time is controlled by computer, print first, then label;

c) The most advanced control system (Siemens plc control system in Germany) and circuit design;

d)The most advanced servo drive control system;

e)The control system has multiple sets of channeling ports, which is easy to upgrade;

lNo special care required during production

Every step of the machine is automatically controlled, except when changing ribbons and labels, no special care is required.

lHumanized design, first-class processing and manufacturing technology, machine appearance with clear lines and perfect structure.

a)Unique vertical roller wheel with rolling mechanism to achieve three-point positioning and labeling;

b)Complete the labeling action while conveying;

c)Roller and rolling belt form a stable positioning system;

d)Roller chain adopts Japanese nsk brand, anti-corrosion and wear-resistant wheels

e) Made of German pom material to ensure the conveyor roller structure durable for more than 10 years;

f)This system ensures that the labeling error is ≤1㎜;

g)Adopting mechanical transmission screw bottle separating mechanism, with accurate bottle separating station and stable bottle spacing.

lStrict assembly and quality inspection, standardized and modular production ensure the stable quality of the machine.

a) The most advanced control system (German original Siemens PLC control system) and intelligent circuit design.

b) The control system has multiple sets of channeling ports, which is easy to upgrade.

c) With more than twenty groups of memory functions, the efficiency is greatly improved when the product is transferred.

d) The preset interface is convenient for future program upgrades, and can be installed with missing detection and CCD imaging system.

e) It can run in series with printer or laser printer.

f) Super AC servo drive system, the most advanced servo drive controller, the control system can be repaired.

g) The whole machine adopts German SICK, high-quality photoelectric sensors, and German Siemens inverters to ensure high precision and high stability.
