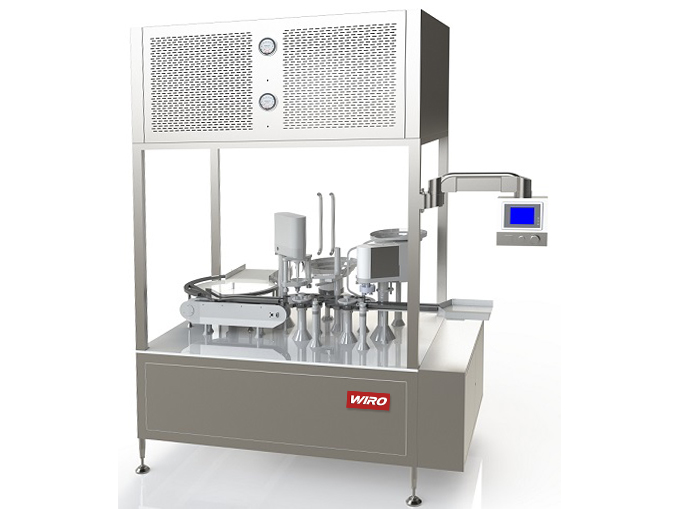

FSZ Antibiotic Powder Filling Stoppering Capping Machine

Main features

lApplication range: vial, small round bottle, customized bottle.

lThe conjunction between tabletop and support column that above table was designed as chamfer type, tidy and beautiful, no blind corner of cleaning.

lAdopt auger filling method which driven by servo system, has high filling accuracy.

lUnique warn stop running function to avoid auger rotating friction with powder discharge port.

lPossess function: rejecting away the fallen vial, no filling if lacks vial, no stoppering if lacks vial.

lHas one-key calibration function for filling volume, easy and visualized setting.

lUse transparent hopper, can easy to observe powder situation.

lFilling process and capping process are transferred on 2 separated starwheel, can prevent the particle from capping station going into filling station.

lIntegrated filling-stoppering-capping steps together, compact structure design will save lot cleanroom area.

lOptional ORABS/CRABS grade LAF purifying hood to realize no interrupt production inside machine.

lOptional online LAF monitor system, detection the air speed, dust particle etc., meet cGMP manufacturing requirement.

lCustom design equipment according to user production requirement.

Working process

After dried and sterilized vials go to arranging turntable, then will be fed by conveyor into 1# starwheel and will rotate together with this starwheel intermittently, then vial will in turn through filling station and stoppering station. At filling station, powder is transferred from barrel and feeding device will enter to transparent powder hopper. the filling auger will rotate certain circles at the preset pulse, the measured volume powder will drop into vial. At stoppering station, vibration hopper will convey stoppers along chute arrive at terminal station, then pressing head will press each stopper onto mouth of vial.

Later vial will enter into 2# starwheel and also will rotate with that starwheel intermittently, vial will turn through cap-placing station and capping station. At the cap-placing station, vibration hopper will transport caps along chute arrive at terminal station and cap will fall onto mouth of vial. At the capping station, the capping unit will crimp cap tightly on neck of vial.

At last, vials will be conveyed to tray or downstream conveyor.

Main technical parameters
